Native Instruments Komplete Audio 2

Native Instruments Komplete Audio 2

Rs. 14,123.00
Rs. 16,615.00 Rs. 14,123.00
Sale Sold out
Taxes included.

GETTING STARTED

Welcome to the KOMPLETE AUDIO 2 Quick Start Guide.


You will learn how to use the KOMPLETE AUDIO 2 for audio playback and recording. If you have some experience already, feel free to jump straight into any section using the navigation above. For beginners, we recommend spending some time reading through the whole guide.

First take a look at the features to get an overview:





SYSTEM REQUIREMENTS

 macOS 12, 13, 14 (latest update), i5, 4 GB RAM

Intel Core i5 or equivalent CPU, or Apple Silicon (native mode or using Rosetta 2; M1, M1 Pro, M1 Max, M2), 4 GB RAM

 Windows 10 (latest Service Pack), Intel Core i5 or equivalent CPU, 2GB RAM
  • USB 2.0 or higher (cable included)
  • Graphics Card which Supports Open GL 2.1 or higher
  • 3 GB free disk space for MASCHINE Essentials, plus 1 GB free disk space for all other software

COMPATIBILITY

Compatible with Mac and PC (ASIO/Core Audio/DirectSound/WASAPI)

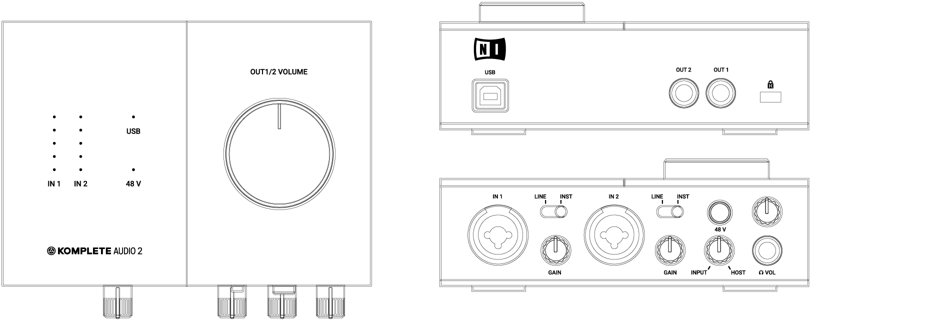

KOMPLETE AUDIO 2: SIZE AND WEIGHT

Dimensions: 140 x 112 x 52 mm
Weight: 360 g



AUDIO CONVERTERS

A/D Channels: 2
D/A Channels: 2

SAMPLE RATES:

44.1, 48, 88.2, 96, 176.4, 192 kHz


BIT RESOLUTION

24 Bit



HARDWARE CHARACTERISTICS

Output balanced
Maximum output level +12 dBu
Frequency response 20 Hz - 20 kHz +/- 0.1 dB
Headphone
Maximum output level +4.2 dBu (48 mW @ 33 Ohm)
Frequency response 20 Hz - 20 kHz +/- 0.1 dB
Instrument input
Maximum input level +10 dBu
Frequency response 20 Hz - 20 kHz +/- 0.03 dB
Line input
Maximum input level +20 dBu
Frequency response 20 Hz - 20 kHz +/- 0.02 dB
Microphone
Maximum input level +7 dBu
Frequency response 20 Hz - 20 kHz +/- 0.02 dB

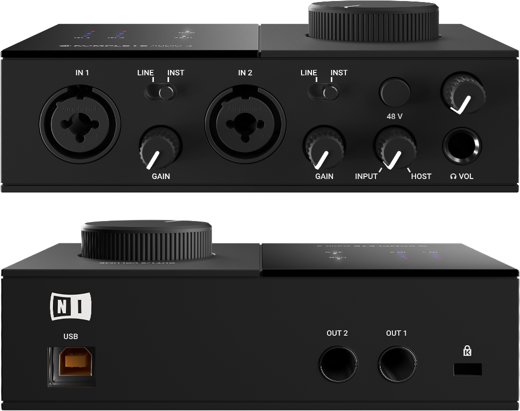

KOMPLETE AUDIO 2

  • 2 inputs: 2x combi-XLR/jack inputs with 48V phantom power and individual gain control
  • Outputs: Stereo jack out
  • VU-meter for adjusting levels
  • Direct monitoring for blending audio playback while recording
  • Big volume knob
  • Headphone out with high power output and volume control
  • USB 2.0 bus powered
  • Audio quality: Premium quality at 192 kHz and 24 bit
  • Included software: Ableton Live Lite, MASCHINE Essentials, MONARK, REPLIKA, PHASIS, SOLID BUS COMP, and KOMPLETE START
